Summary

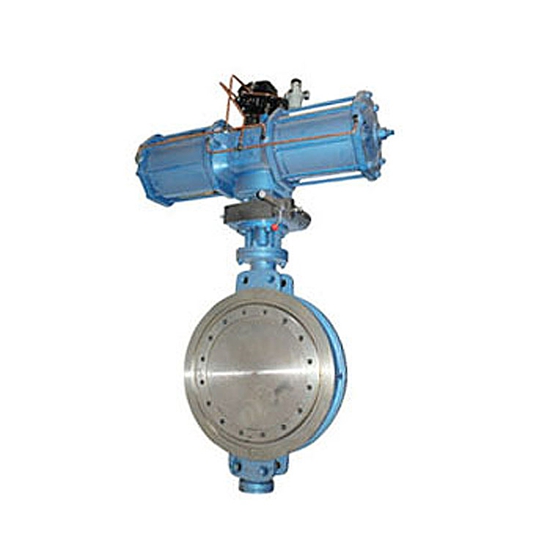

WB300 series high performance butterfly valve is a new valve based on absorbing the advantages of different structure of butterfly valve designed on the. This butterfly valve plate sealing surface for the -- -- spherical cambered surface body, sealing mechanism by the system pressure reaches a true dynamic seal, therefore has the cutting performance and excellent durability. Its small size, light weight, manufacturing a wide range, easy to repair and maintenance.

The main performance parameters
[body]
Flat type casting
Nominal diameter of 80-600mm
Nominal pressure PN 1.6 ANSI150 JIS 10K
The connection type of clip
Material ZG25
ZG0Cr17Ni12Mo2 and ZG1Cr18Ni9
The valve cover at room temperature (together with the valve body casting): -45 ° C-+200 ° C
High temperature +200 ° C-+500 ° C

[valve components.
The form of spherical (valve plate seal ring contact type)
The flow characteristics such as the percentage of properties of approximation
The valve plate material
ZG0Cr17Ni12Mo2 and ZG1Cr18Ni9+ hard chromium plating ZG0Cr17Ni12Mo2 and ZG1Cr18Ni9+ welding hard alloy
The valve plate angle
90 ° (with RC and ZSH actuators)
60 ° (with HA film executive body)
The seat material
Seal (0Cr17Ni12Mo2) soft sealing (PTFE and MoS2)
Bearing material 0Cr17Ni12Mo2

Ordering instructions
Type and name 1 product 2 nominal diameter DN (3 4 mm nominal pressure flow characteristic of the 5 body material and trim materials
6 medium type and temperature range of 7 valve before and after the pressure (differential pressure) 8 seal form 9 accessories
